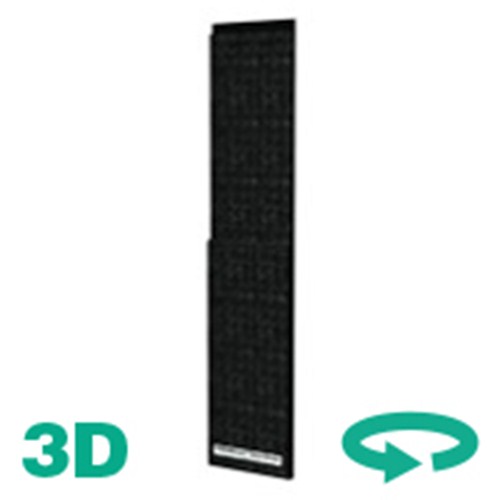

TREMDrain™ Total Drain

Multi-Composite Drainage and Protection Board

TREMDrain™ Total Drain

Multi-Composite Drainage and Protection Board

TREMDrain™ Total Drain is designed provide a value-engineered alternative to perforated pipe and aggregate subsurface drainage systems in applications requiring high strength and high flow capacity. This 24" (609.6 mm) product includes an integrated transition flange for easy connection to TREMDrain Sheet drain products and enhances system drainage performance.

Download Data Sheet Find a Rep or Distributor

Benefits of Using TREMDrain Total Drain in Your Next Project

Fully Compatible

Designed for use with TREMproof™ waterproofing and Paraseal® membranes

Streamlined Installations

Replaces or eliminates the need for a separate protection course

Improved Water Flow

Provides an uninterrupted flow plane and eliminate the opportunity for hydrostatic pressure to form against a wall

Lightweight for Easy Installations

Lighter weight means easier installations compared to conventional pipe and stone drainage

TREMDrain Total Drain Is Best For

Perimeter drain applications

Product Properties

ASTM D1621: Compressive Strength	9,000 lb/ft² (431 kPa)
ASTM D1777: Thickness	7/16 to 1 in transition (11 to 25 mm transition)
ASTM D4716: In-Plane Flow Rate	21 gpm/ft (261 Lpm/M)
Dimensions	2' x 50' (0.6 x 15.2 M)
