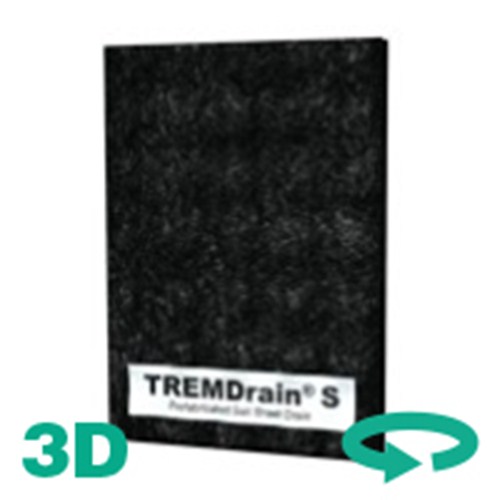

TREMDrain™ S NW

Multi-Composite Drainage and Protection Board

TREMDrain™ S NW

Multi-Composite Drainage and Protection Board

TREMDrain™ S NW is designed for horizontal drainage applications requiring a high compressive strength and moderate flow capacity. TREMDrain S NW uses a typical non-woven filter fabric and includes a protective backing film for added membrane protection.

Download Data Sheet Find a Rep or Distributor

Benefits of Using TREMDrain S NW in Your Next Project

Fully Compatible

Designed for use with TREMproof® waterproofing and Paraseal® membranes

Streamlined Installations

Replaces or eliminates the need for a separate protection course

Improved Water Flow

Provides an uninterrupted flow plane and eliminate the opportunity for hydrostatic pressure to form against a wall

Lightweight for Easy Installations

Lighter weight means easier installations compared to conventional pipe and stone drainage

TREMDrain S NW Is Best For

Horizontal drainage applications

Product Properties

ASTM D1621: Compressive Strength	30,000 lb/ft² (1,436 kPa)
ASTM D1777: Thickness	1/4 in (6.35 mm)
ASTM D4716: In-Plane Flow Rate	13 gpm/ft (161 Lpm/M)
Roll Length	50 ft (15.24 M)
Roll Width	4 ft (1.22 M)

TREMDrain S NW Resources

Download any of these featured resources or find a specific type of document below.

Data Sheet

Application/Installation Instruction

Product Literature

Cert Letter

Comparing TREMDrain S NW

	TREMDrain™ S NW	TREMDrain™ 1000PF	TREMDrain™ 2000NW	TREMDrain™ 3000NW
ASTM D1621: Compressive Strength	30,000 lb/ft² (1,436 kPa)	15,000 lb/ft² (718 kPa)	18,000 lb/ft² (862 kPa)	30,000 lb/ft² (1,436 kPa)
ASTM D1777: Thickness	1/4 in (6.35 mm)	3⁄16 in (11mm)	3⁄16 in (11mm)	¹/₄ in (6.35 mm)
ASTM D4716: In-Plane Flow Rate	13 gpm/ft (161 Lpm/M)	8 gpm/ft (224 Lpm/M)	18 gpm/ft (224 Lpm/M)	13 gpm/ft (161 Lpm/M)
Roll Length	50 ft (15.24 M)	50 ft (15.24 M)	50 ft (15.24 M)	50 ft (15.24 M)
Roll Width	4 ft (1.22 M)	4 ft (1.22 M)	4 ft (1.22 M)	4 ft (1.22 M)
